Parameter：
Working length | 2500mm |
Working width | 1100mm |
Max working thickness | 65mm |
X/Y/Z working stroke | 2700*1200*80mm |
Working table | Pass-through vacuum pads table with top pressed device |
XY axis moving speed | 50m/min |
Saw unit moving speed | 5~15m /min |
Main cutting saw motor power | 6kW *3 PCS |
Scoring saw motor power | 1.1kW*3 PCS |
Main cutting saw speed | 6000 r/min |
Scoring saw speed | 12000 r/min |
Indeed & out-feed motor power | 550W *2PCS |
Servo motor power | 850W*4PCS |
For table open-close motor power | 750W*1PC |
Vacuum pump motor power | 4 kW |
Main saw blade size | ø30*320mm |
Scoring saw blade size | ø22*120mm |
XY axis linear orbit | 2M |
Z axis linear orbit | TBI 2505 |
Y axis linear slide | HGH30 |
X Z axis linear slide | HGH25 |
Electric components | Schneider
|
Linear orbit lubricantion | NC auto filling |
Controller | Industrial Inset controller |
Total motor power | Approx. 42kW AC 380V/50Hz |
Machine size | Approx. L5000×W2800×H2300 mm |
Machine weight | Approx. 3100kgs |
Characteristics of CYWN49S CNC four-side cutting saw:：
1.Industrial production model, heavy-duty all-steel structure welded, and treated by material stress analysis and tempering effect, it is firm and not deformed.
2.Man-machine dialogue control system. Friendly Chinese and English operation interface, modular processing size, easy to learn and understand, fast and powerful processing path algorithm to ensure accurate processing size.
3.The constant power special spindle has a large torque, suitable for heavy cutting, and the motor bearing is a high-precision ceramic bearing with low noise and long life.
4.Taiwan TBI 2505 ball screw has large bearing capacity and precise cutting.

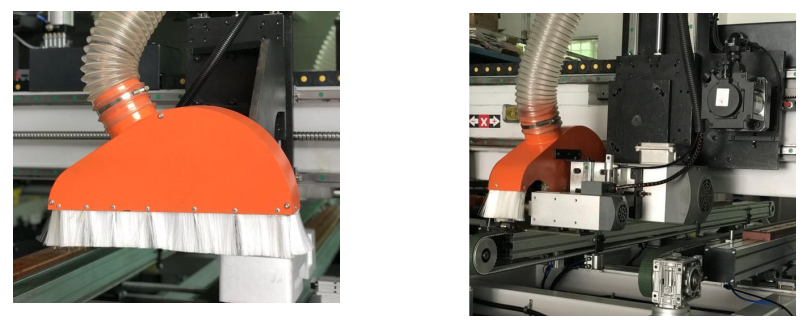

Machine pics:
