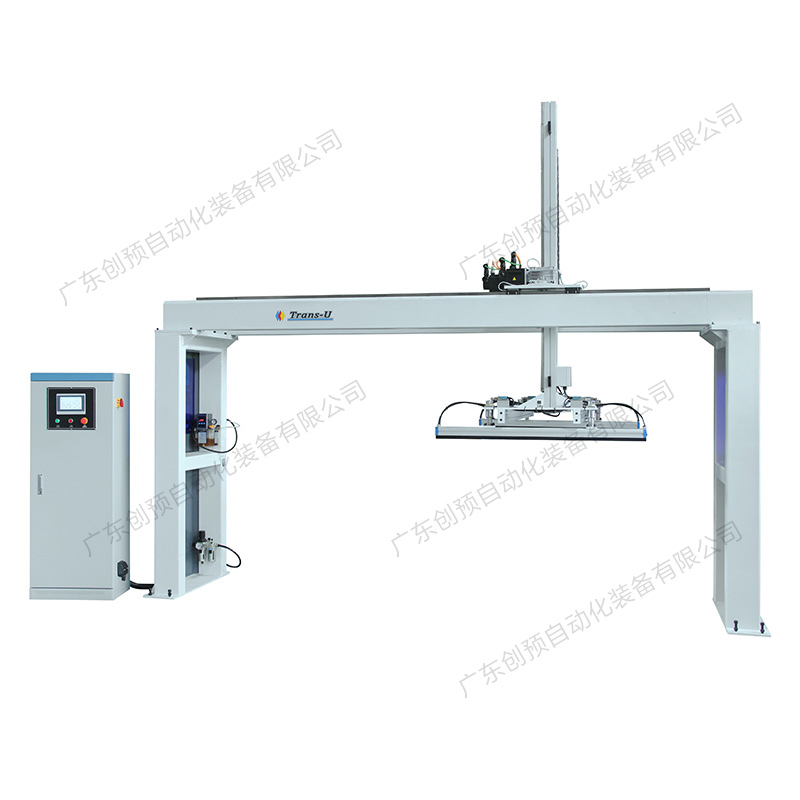

Parameters:

Beam size: 4500mm (size can be customized)

Machine power: 4KW (2KW servo with brake for lifting, 1.5KW servo for translation)

Maximum height of equipment: 4500mm

Beam height from the ground: 2000mm

Maximum stacking height: 1200mm

Equipment maximum load: 50KGS

Loading and unloading speed: 3 to 5 pieces/min

Adopt Delta PLC, servo motor control

Product features: Servo control, high speed, precision and safety

Configuration:

1.The length of the beam can be customized;

2.Adsorption feeding method, optional: 1. Silicone circular suction cup; 2 sponge suction cup; 3. Clamping hand feeding rack

3. The machine can choose two-legged, three-legged and four-legged gantry machine.
